Edge Bander – Holz Her Sprint 1329

رمز SKU المنتج: M11932 التصنيفات: , ,

الوصف

Precision and productivity for the panel processing

Everything from a single source. Everything 100%!



TECHNICAL SPECIFICATIONS

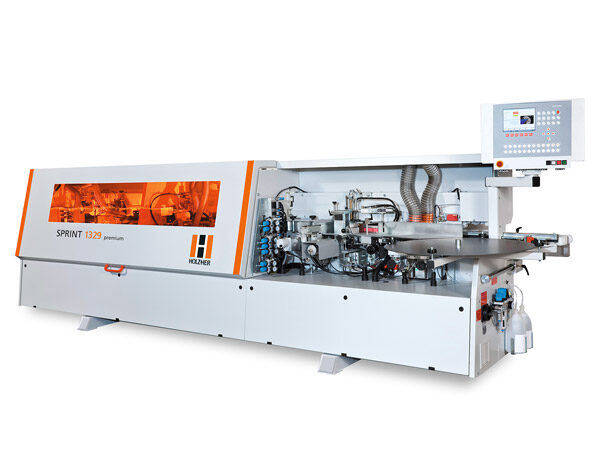

SPRINT 1329 Premium

Edge banding machine for edging and post-processing plate-shaped materials

Edging thickness coiled edging: 0,4 – 3 mm

Edging thickness of cut-length edging:

max. 3 mm with unit FF501/1833

max. 8 mm without unit FF501/1833

max. 15 mm with tool change at the Multifunctional trimming unit 1827 / 1826 possible

Edge height: max. 65 mm

Workpiece thickness: 6 – 60 mm

Workpiece width: min. 60 mm

Workpiece length: min 160 mm

Feed speed: variable 10 – 18 m/min.

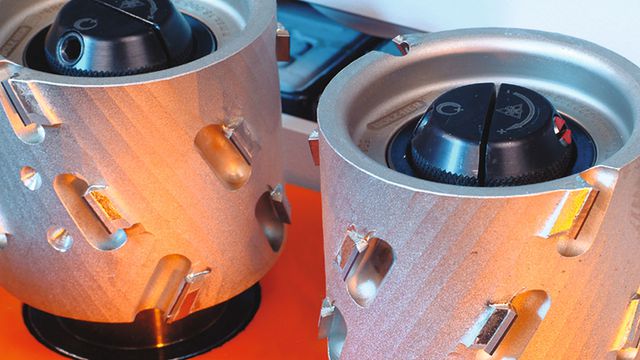

Pre-milling unit 1802 (2 x 2.0 kW, 200 Hz, 12000 min -1) with 2 cutter units for joining the panel edge 1x counter clockwise run, 1x clockwise run, manually adjustable run-in linear stop, max. joint thickness: 3 mm, patented ProLock screw-in clamping system for rapid tool change.

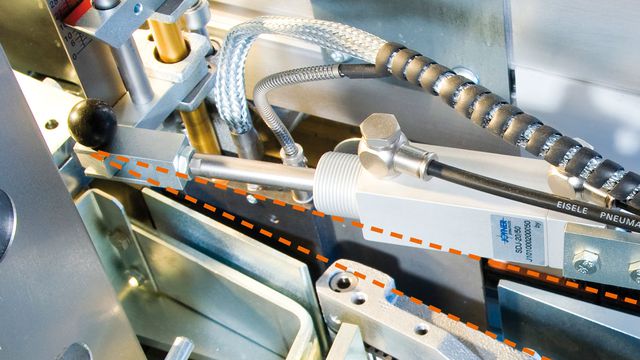

Edge feeder 1903 SYNCHRO automatic transport of roll and strip products max. load capacity: 40 mm for coils: max. edge thickness 3 mm (material dependent) forward cut up to max. 65 mm (material dependent) max cross section 135 mm (material dependent) support table for coils 820 mm.

Glue application system Glu Jet GJ301 automatic (2,3 kW, 50 Hz) Automatic adjustment of gluing height (tracing nozzle)

Glu Jet hybrid technology Processing of EVA and PUR adhesives. Adhesive in cartridge or granules form Processing of neutral and coloured adhesives

Glue applied by means of nozzle technology Heat-up time: 3 minutes. Incl. hopper for cartridges: 4 cartridges (approx. 1,4 kg). Incl. hopper for glue granules: (approx. 1,5 kg). Incl. automatic reloading of glue. Incl. automatic rinse function directly at the control panel through separate rinse channel. Automatic glue temperature reduction according to time.

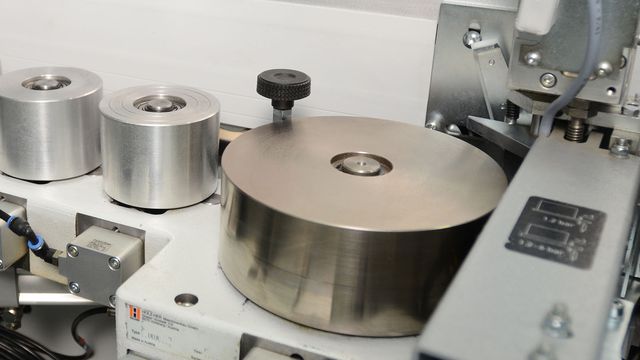

Pressure unit 1913 pneumatic: first roller driven, 2 support pressure rollers, with pneumatical control of the pressure rollers.

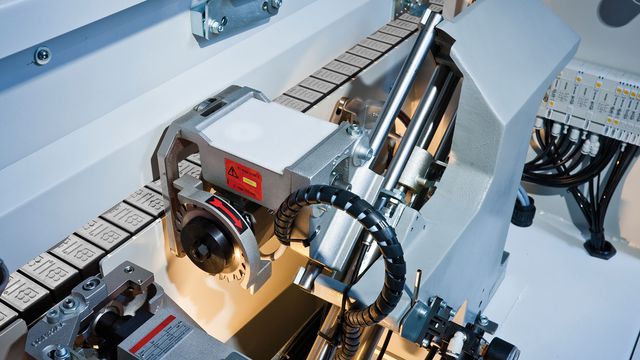

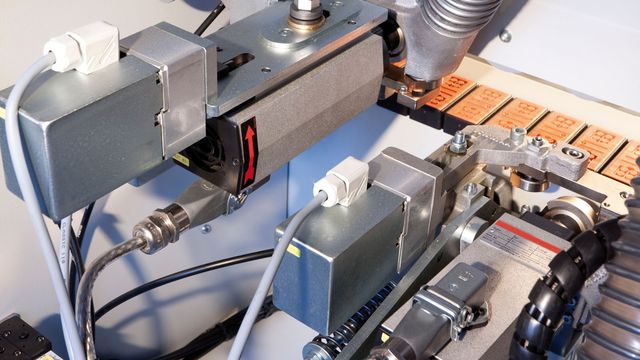

End trimming unit 1918 (60 mm) pneumatic (2 x 0,45 kW, 12000 min -1) with electro pneumatic angle adjustment 0 – 10 , for coils and strips max. 15 x 45 mm, 3 x 65 mm, incl. 2 alternating teeth carbide circular saw blades, 110 mm, 20 teeth, incl. extraction hoods.

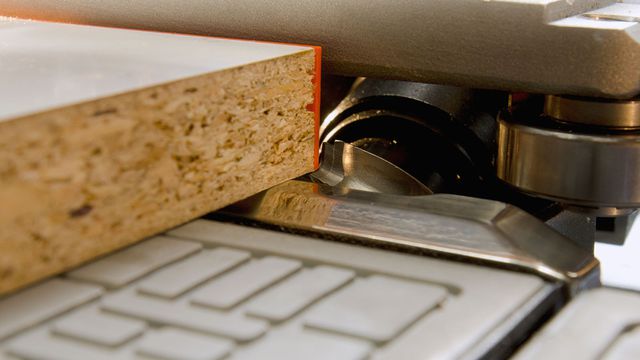

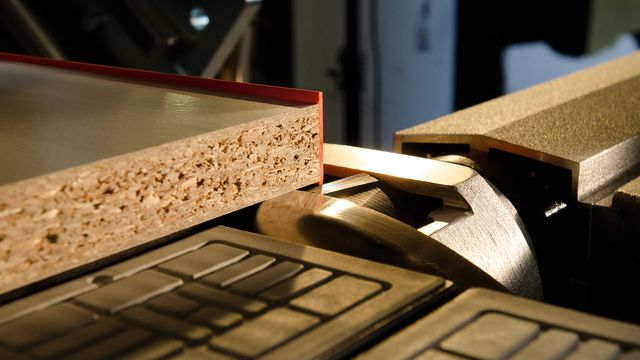

Multifunctional trimming unit 1827 MOT4 for cutting of the top and bottom longitudinal edge with motorized positioning of the horizontal tracer shoes with motorized positioning of the cutter motors in axial direction incl. pneumatic adjustment (separated above and below) for flush-radius milling, incl. blow nozzles

– Flush trimming, – Radius 3 mm – Chamfer trimming, swiwel range 0-15 , manual

5029009*Vertical sensing rollers manualManual adjustment of the vertical sensing roller for 0,1 mm for cutting of the edge overhang, for ex. plastic edges.

5024220*Cutter, diamond 56 / 60 mm, Z = 2, R = 2.0 mm counterclockwise, diamond coated, permanently equipped tool with CM technology (LEUCO), with integrated chip removal, patented ProLock screw-in clamping system for rapid tool change.

5024221*Cutter, diamond 56 / 60 mm, Z = 2, R = 2.0 mm clockwise, diamond coated, permanently equipped tool with CM technology (LEUCO), with integrated chip removal, patented ProLock screw-in clamping system for rapid tool change.

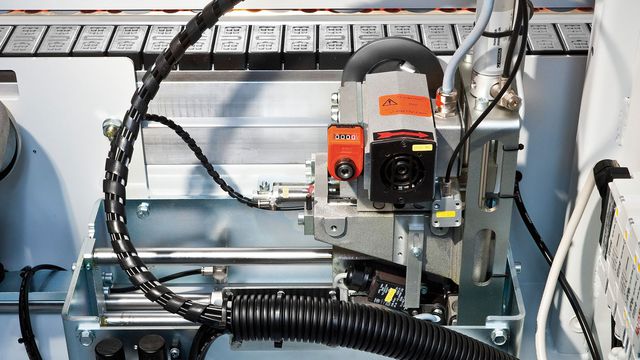

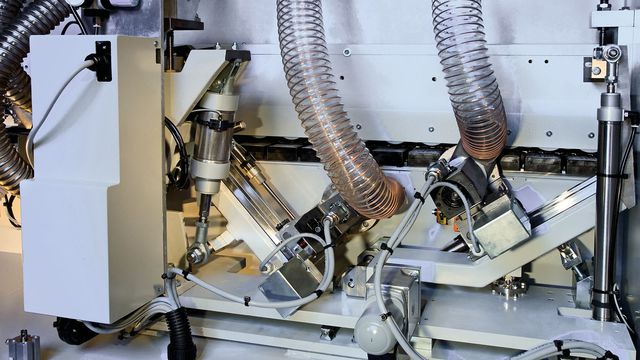

5034735*Form trimming unit FF501 (2 x 0.65 kW, 200 Hz,12000 min-1 ) cutting of the top and bottom longitudinal edge, copy cutting of the top and bottom longitudinal front edge and rear longitudinal overhang corner copying, post-forming corners incl. diamond coated, permanently equipped tool R = 2 mm with CM technology (LEUCO), with integrated chip removal, with patented ProLock screw-in clamping system for rapid tool change, with fix copy heads with pneumatic horizontal adjustment of the entire unit

max. edging thickness: 3 mm

workpiece thickness: 10 – 60 mm

max. edging height: 65 mm

Feed speeds with corner rounding: up to 25 mm workpiece thickness = max. 15 m/min.

up to 38 mm workpiece thickness = max. 12 m/min.

up to 60 mm workpiece thickness = max. 10 m/min.

5015331*Diamond coated cutter 72,5 mm x 19 mm, 20 mm, Z = 4 R = 2 mm, left hand with CM technology (LEUCO system) incl. integrated chip removal and patented ProLock tool connector for fast and precise tool changing for form trimming unit FF701.

5015332*Diamond coated cutter 72,5 mm x 19 mm, 20 mm, Z = 4 R = 2 mm, right hand with CM technology (LEUCO system) incl. integrated chip removal and patented ProLock tool connector for fast and precise tool changing for form trimming unit FF701

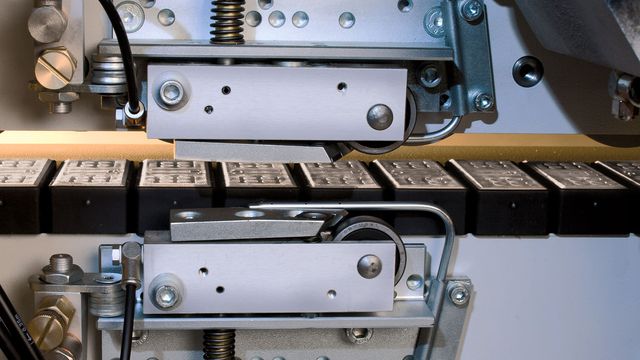

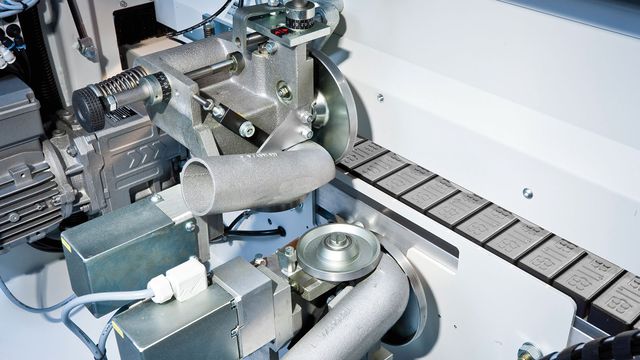

Scraper unit 1929 MOT2 with motorized adjustment of the horizontal copy rollers incl. pneumatic adjustment (top and bottom separately) with 2 scraper carriers, incl. change-over knifes R = 2 mm and chip removers, workpiece thickness: min. 12 mm, inkl. blow nozzles.

5023128*Surface glue scraper 1964 scraping out superfluous glue for a clean glue line. Plunge-in controlled top and bottom separately, incl. 2 blow nozzles, incl. 2 turnover knifes, incl. dust extraction hoods.

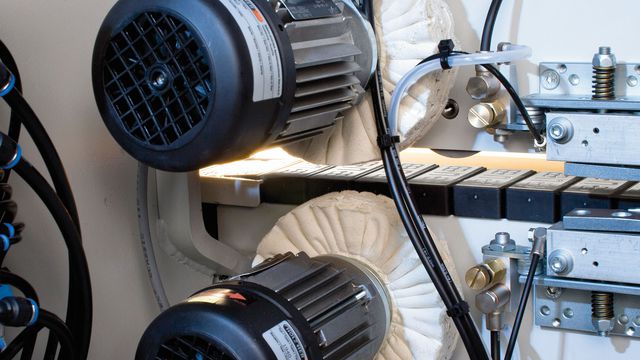

5014066*Buffing unit 1940 (2 x 0.12 kW, 50 Hz, 1,400 min-1) For edge cleaning and polishing, with 2 textile buffing wheels, tilt range 0 – 5 .

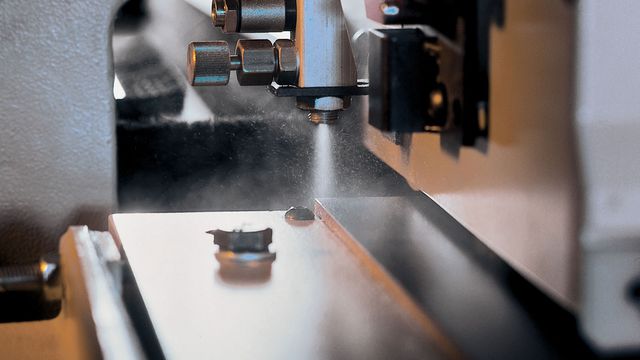

Sprayer 1856 for the in- and outfeed area For the infeed area: Electronically controlled release agent sprayer with release agent.For the outfeed area: Electronically controlled cleaning agent sprayer with cleaning agent.

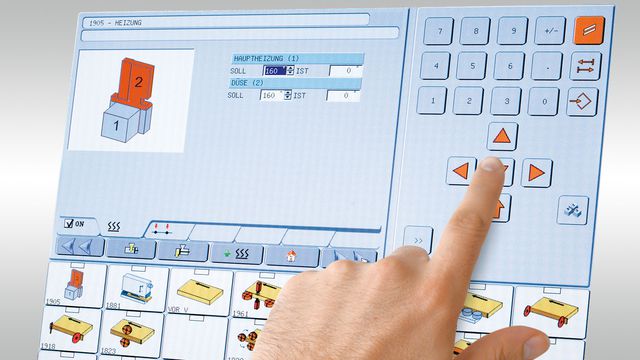

5002491USB Connector for data protection (backup) and / or direct input of processing datas at the control panel
