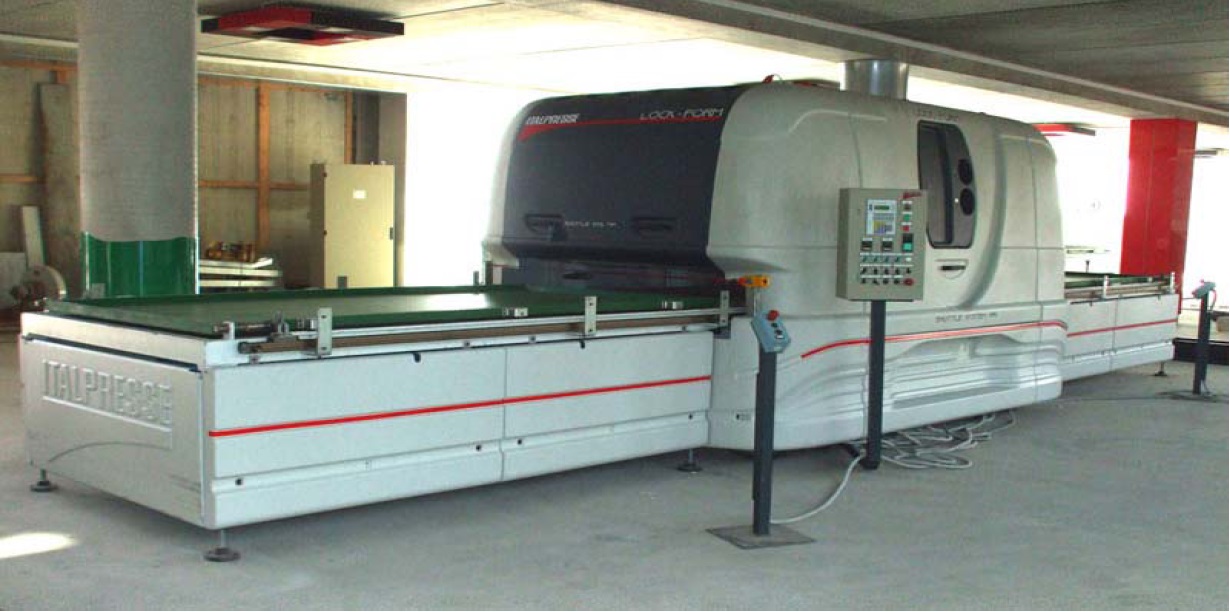

Membrane Press – Ital Lockform + Air Tank 1000LT

رمز SKU المنتج: M10601 التصنيفات: ,

الوصف

LOCK-FROM Air Shuttle System, with automatic loading and unloading for the application of veneer and PVC on profiled panels with shuttle system air.
Dimesions : 9600x2400x2200 mm
Ring press frame – Press level dimesions : 1450×2800 mm
Useful dimesion, approx : 1250×2650 mm
Load side : 1450 mm
Inlet Opening : 200 mm
Cylinder storke : 200 mm
Mouvment cylinders : 2
Approx. operating temperature : 130˚C
Specific pressure : 7 KG/cm²
Hydraulic circuit pressure : 200 bar
Min. tempertaure at each point of the panel : 85˚C
Max. useful thickness : 55 mm
