Description

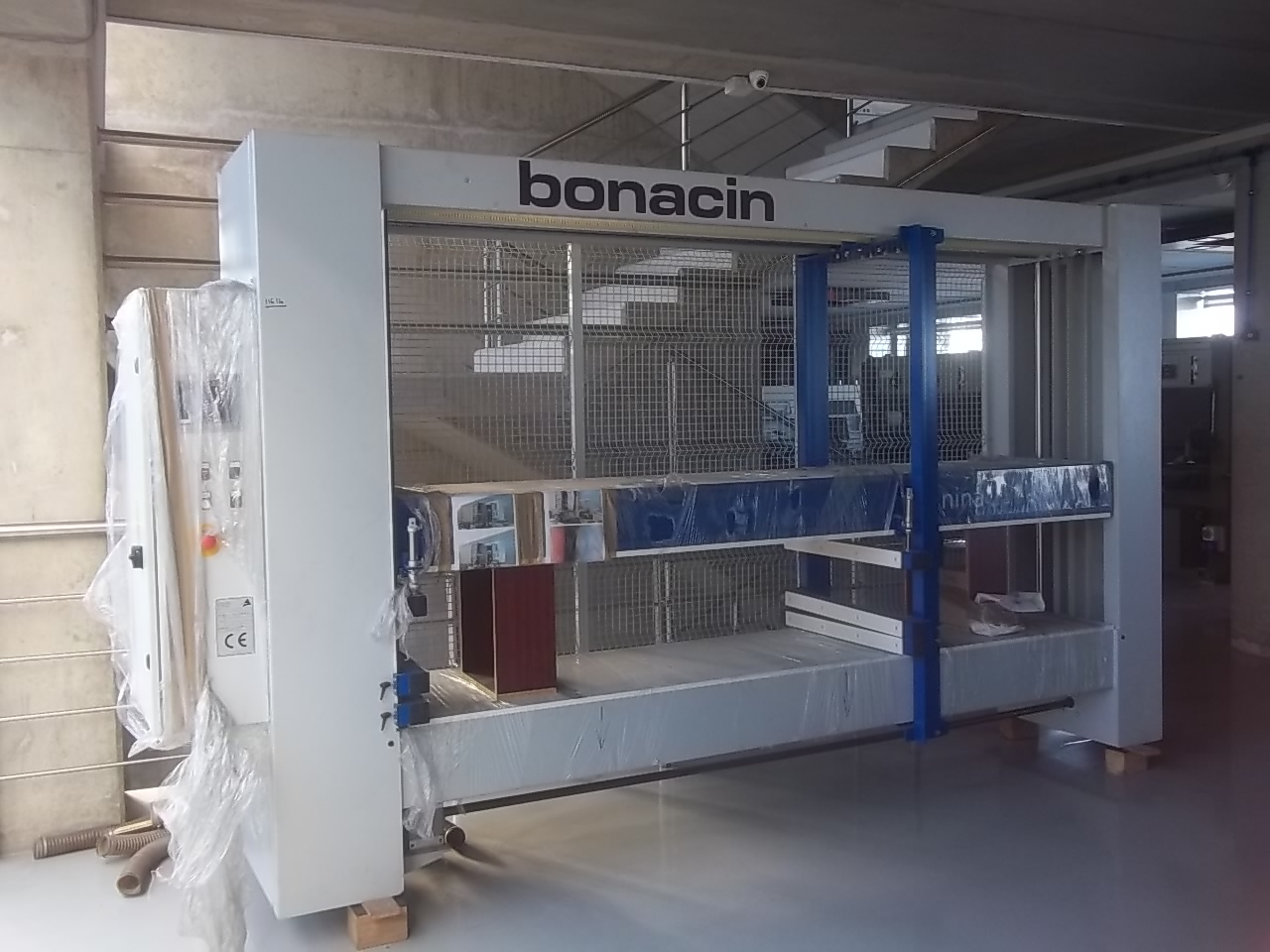

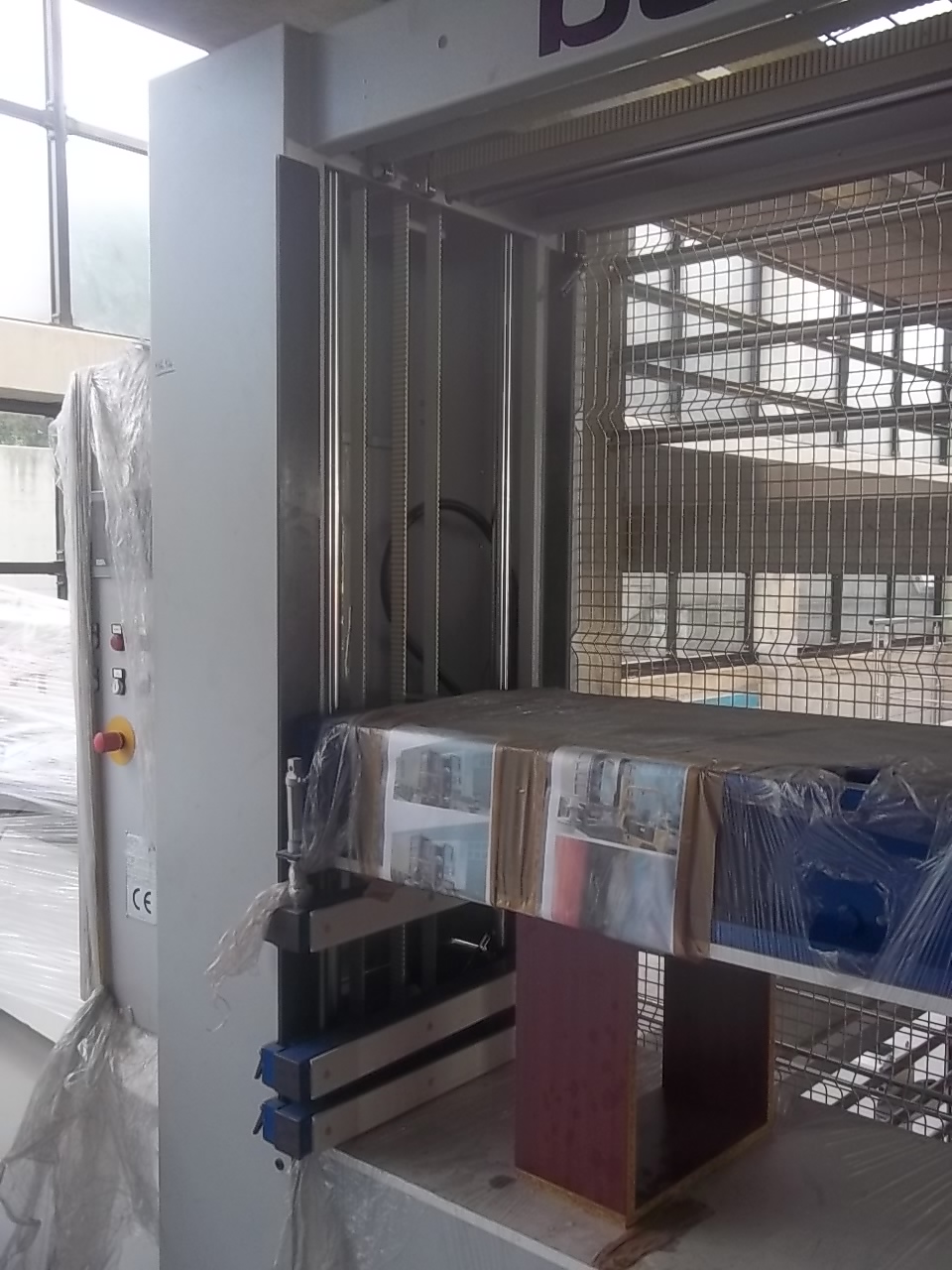

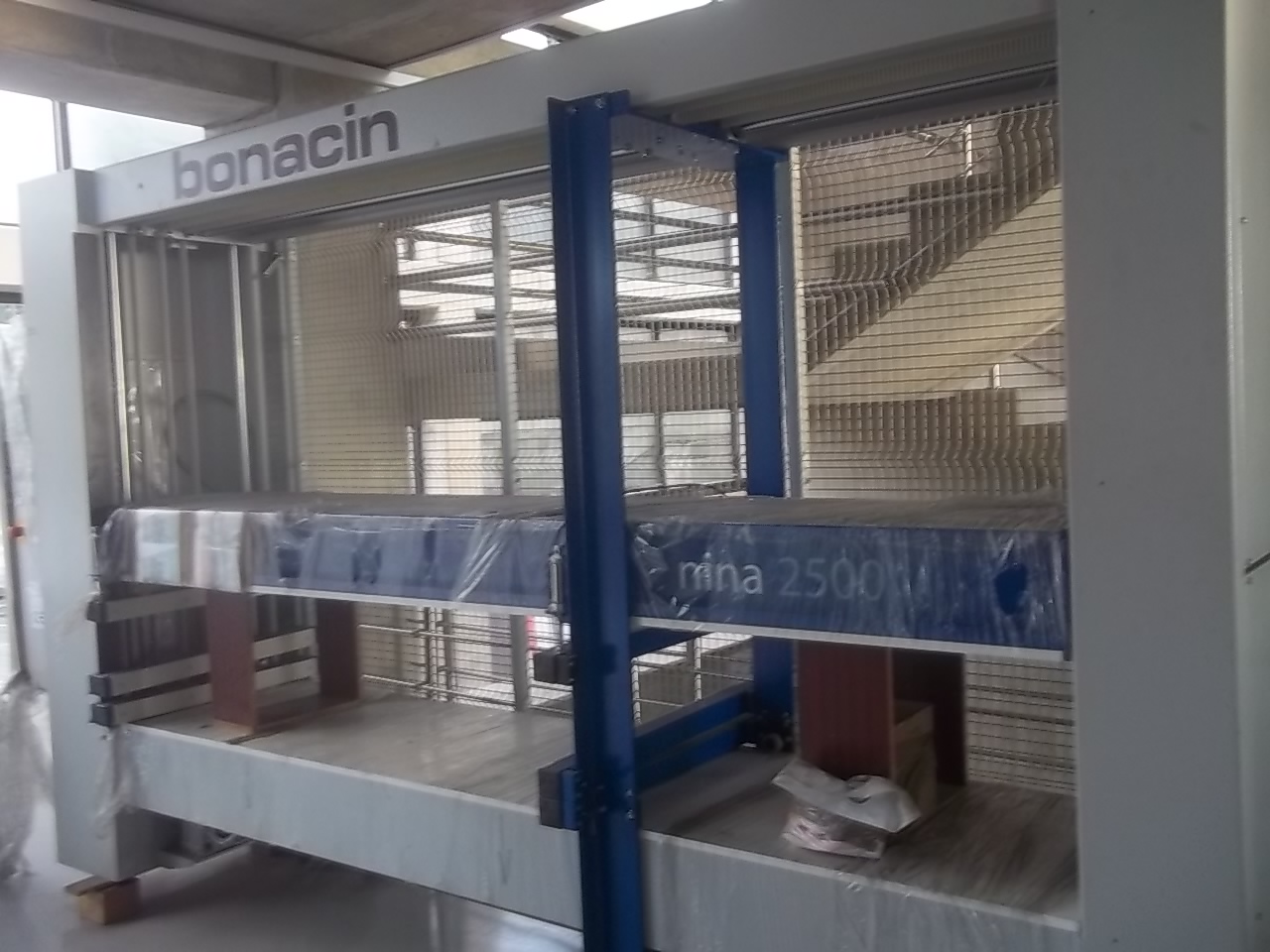

| Electro-mechanic press |
|
 |
|
- Excellent production capacity and low operating costs.
- Ideal for both small and large-sized companies (not mass-produced furniture)
- Room-saving and limited weight.

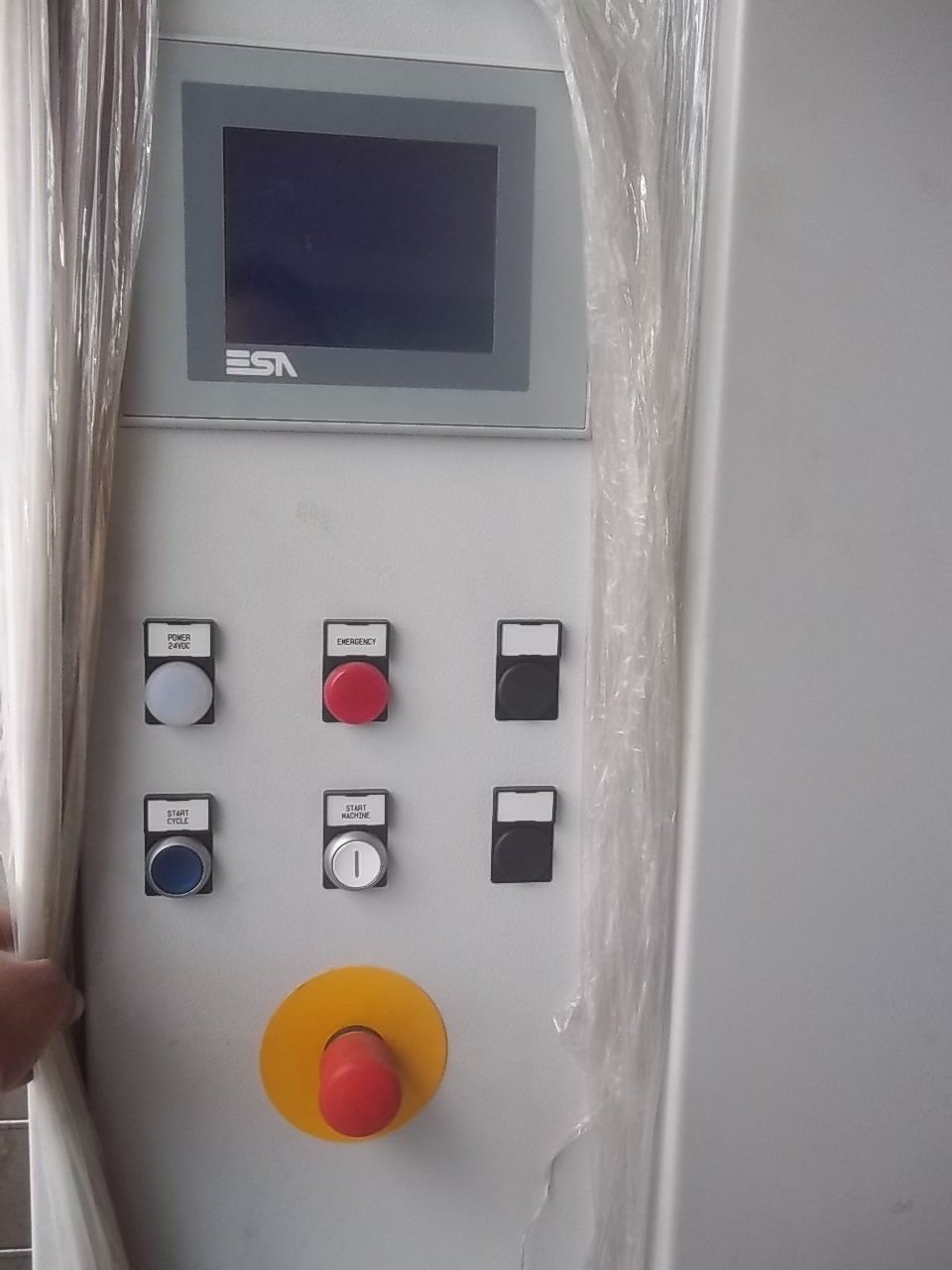

- Automatic pressing cycle programmed via PLC.
- Sequenced-assembly of different furniture pieces without hand-preparation and no idle time.
- The vertical and horizontal pressing operation make use of an electro-mechanic motor system without the aid of oil-or air-operated cylinders.

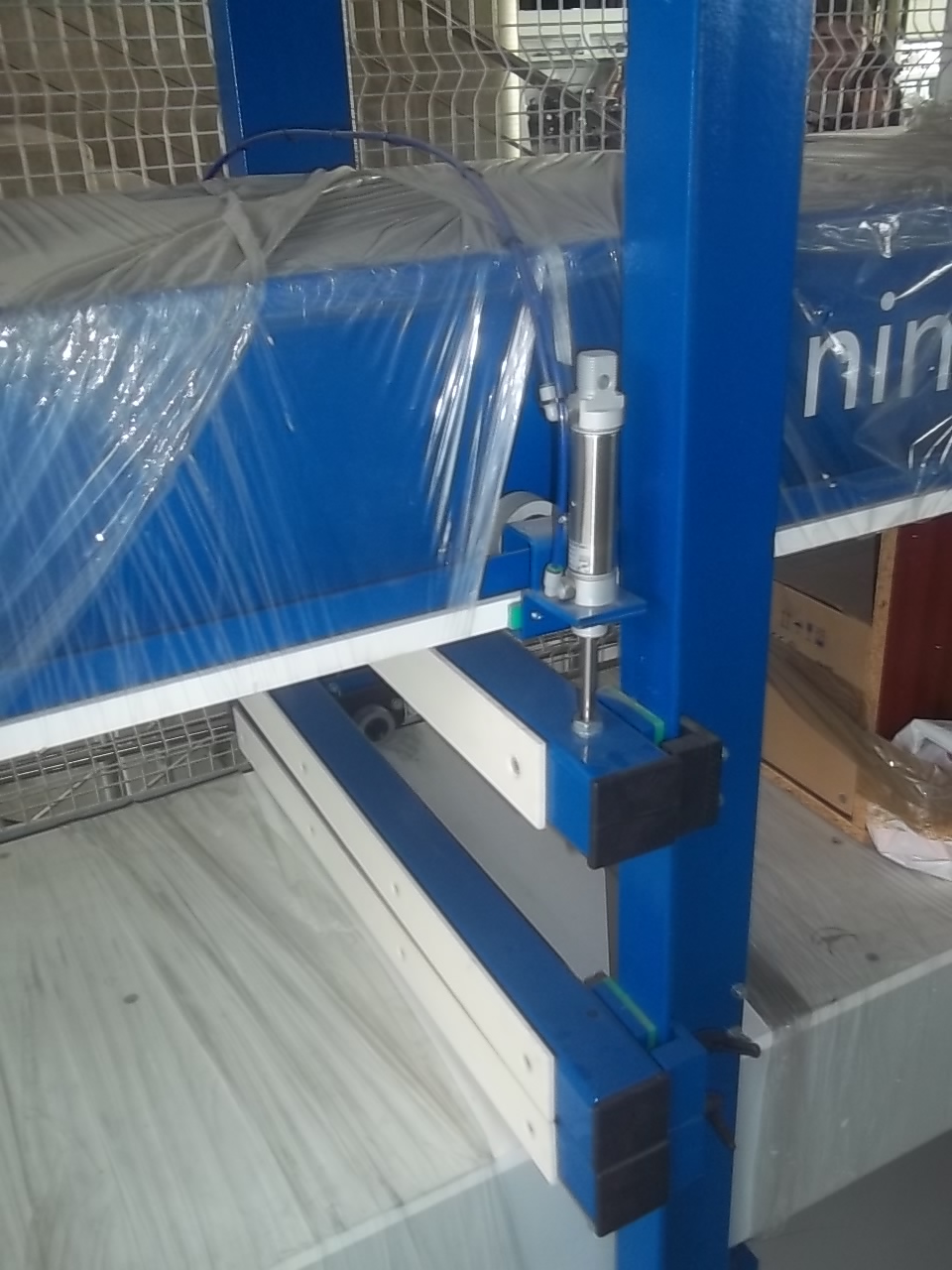

- Possibility of adjusting the pressing strength, both vertical and horizontal.
- Manual furniture loading and unloading.
- Low energy consumption (1Kw/hour).
- Totally noise-free.
- Does not require any servicing.
- The machine and electric system are manufactured in compliance with CE standards and are fitted with the relevant protections.
|
Max. Clamping Height : 1250 mm
Min. Clamping Height :200 mm
Max. Clamping Length : 2500 mm
Min. Clamping Length : 200 mm
Max. Clamping Width : 620 mm
Worktable Height : 500 mm
Vertical And Horizontal Pressure : 0 – 1000 Kg
Tension : 400 V / 50 Hz
Installed Power : 2.5 KW
Dimensions : 3900x900x2220 mm
