CabinetControl – for programming your furniture simply

CabinetControl – software for simple furniture designing

Our high quality, user-friendly HOLZ-HER machine control system is an integral part of the machine’s design. The equipment package includes CAMPUS / NC Hops with office and machine license and full-fledged aCADemy CAD software. The optional CabinetControl Base furniture design software rounds out this premium package. This offer provides the prerequisites for effective machining and convenient operation with barcode interface, manual control unit, import features and much more.

• CabinetControl Base as ideal starter package (optional).
• Design of furniture.
• Views can be represented in 2D or 3D.
• Quick adaptation to individual desires of furniture buyers.
• Perfect presentation of furniture.
• Automatic completion of cutting plans.
• Generates CNC machining program automatically at the touch of a button.
• An optional professional version of CabinetControl EVOLUTION is also available with library, calculation, data transfer to pressure beam saws, etc.
• Also ideal for planning kitchens and rooms.

• 4mat provides complete processing

  Complete processing on all 4 sides with lengths up to 1,500 mm without reclamping

  • Simply adjust the bottom jointing dimension – the rest is accomplished automatically.

  Significantly shorter machining times

  • while maintaining maximum precision and machining quality.

  Generous machining dimensions

  • Height up to 920 mm and length up to 3,200 mm without additional supports. And still extremely space-saving and compact.

  Fully automatic thickness adaptation for workpieces from 8 to 70 mm

  • Ideal for rear walls, sides, fronts and even kitchen counter tops. These can be processed in any length in workshops with appropriate space and safety intervals.

  • Complete machining convincingly good

    The EVOLUTION 7405 offers truly unique features. Precise edge routing on all four workpiece edges allows panels to be formatted completely. The result is perfectly formated workpieces completely grooved and profiled on all edges.

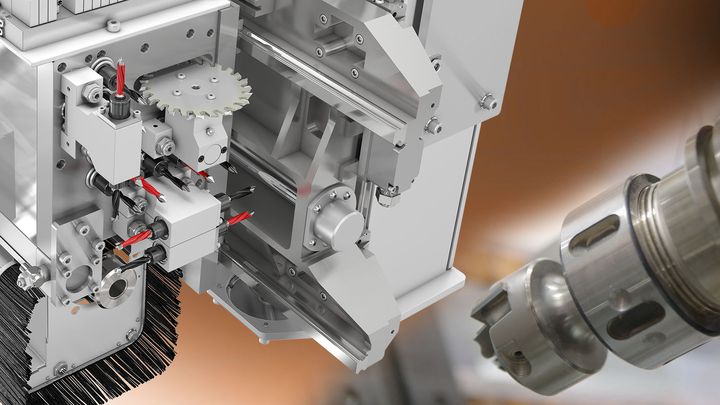

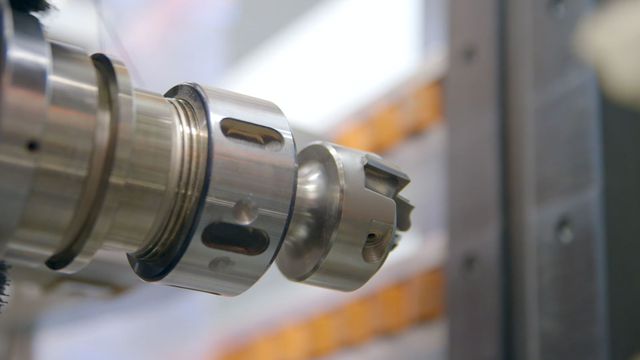

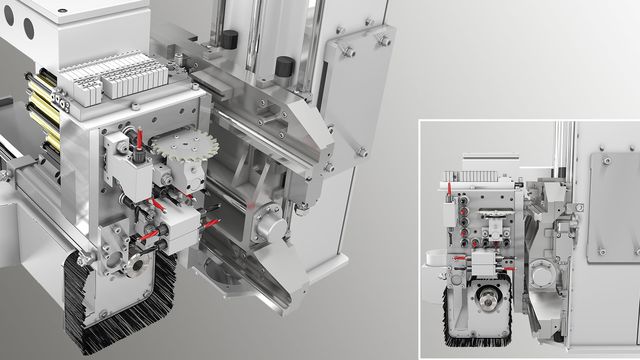

    With the Performance package upgrade to the 6.5 kW HSK spindle with tool changer for 6 tools, the machine also allows profile milling, point thinning, engraving, etc. with automatic tool change in this machine class. The EVOLUTION 7405 is therefore a full value machining center ready for implementation of an infinite variety of design ideas.

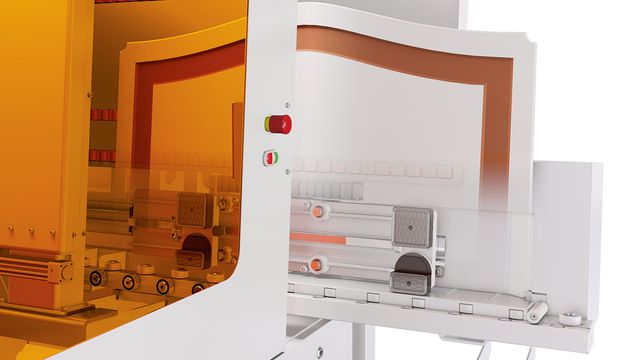

    • Complete processing on all 4 sides in one clamping operation with the EVOLUTION 7405 4mat. Simply adjust the bottom jointing dimension the rest is accomplished automatically.

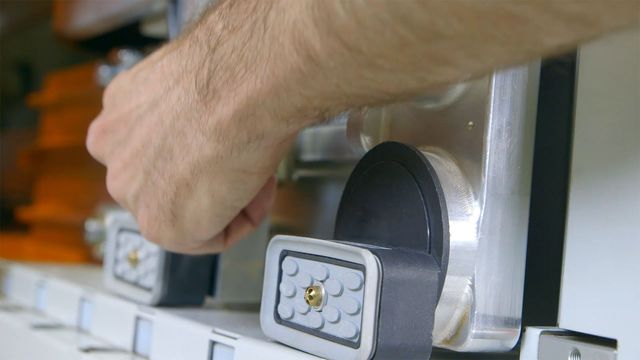

  • Fully automatic positioning of suction cups. Automatic contact pressure independent of material thickness for optimum results and precise dimensions.
