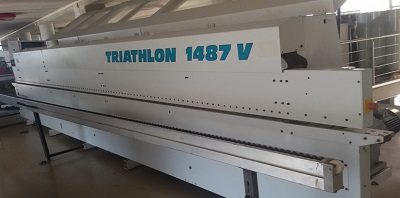

Edge Bander – Holz Her Triathlon 1487 V

Description

Machine Dimensions : 7500x1700x1100 mm
Work Piece Thickness : 6 mm – 60 mm
Work Piece Width Min : 60 mm
Work Piece Length Min : 140 mm
Edge Thickness Max : 25 mm
Feed Speed : 8 – 18 m/min / Variable Adjustable / Automatic Lubrication System
UNITS
– BRIDGE
– EDGE FEEDER FULLY AUTOMATIC
– GLUE STATION GRANULATE 5kg
– PRESSURE UNIT PNEUMATIC MOTOR ASSISTED
– END TRIMMING
– TRIMMING UNIT
– TRIMMING UNIT (motorized buttom and top)
– EDGE SCRAPER
– SURFACE GLUE SCRAPER
– BUFFING UNIT WITH PLUNGE CONTROL
