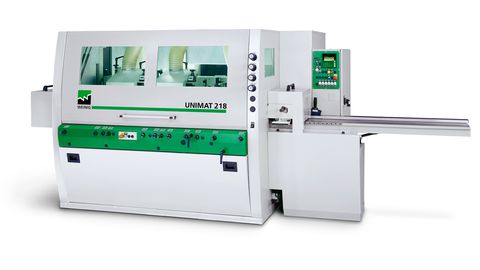

Moulding Machine – 4 Sides – Weinig Unimat 200

Description

The WEINIG Unimat series offers an excellent price-performance ratio combined with outstanding quality. This is even true of the Unimat 200 entry model. From the high-quality cast-iron frames to safe operation, the Unimat 200 features sophisticated technology that guarantees high levels of productivity. The standard version of the machine is highly sophisticated, allowing you to tackle all major challenges of day-to-day operation.

The Unimat 200 has been specially developed for operations that have to keep an eye on their budget but do not want to compromise on quality. It can also be used as a second machine for smaller batches. The WEINIG Unimat 200 – perfect work for a small investment.

The WEINIG Unimat?200?provides

  • High level of work safety
  • Very good price-performance ratio
  • Rapid dimension and profile changes
  • Accurate profile production

Technical Specifications:

  • Working width (with tool cutting circle 125 mm):20-230 mm
  • Working height (with tool cutting circle 125 mm) 8 – 120 mm
  • Diameter 40 mm
  • Revolution speed 6000 rpm
  • 11 KW (15 HP)
  • Diameter 40 mm
  • Revolution speed 6000 rpm
  • Tool cutting circle 40 mm under the table level 100 -200 mm
  • Tool cutting circle 55 mm under the table level 180 -200 mm
  • Maximum profile depth 35 mm
  • Diameter 40 mm
  • Revolution speed 6000 rpm
  • Tool cutting circle 40 mm under the table level 100- 200 mm
  • Tool cutting circle 55 mm under the table level 100-180 mm
  • Maximum profile depth 35 mm
  • Diameter 40 mm
  • Revolution speed 6000 rpm
  • Tool cutting circle 112-200 mm
  • Tool cutting circle for planer heads max. 180 mm
  • Maximum profile depth 35 mm
