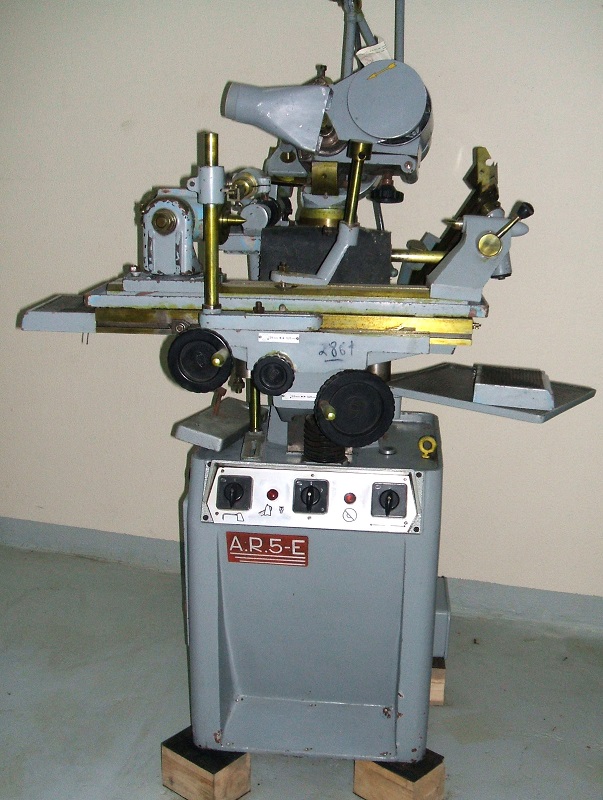

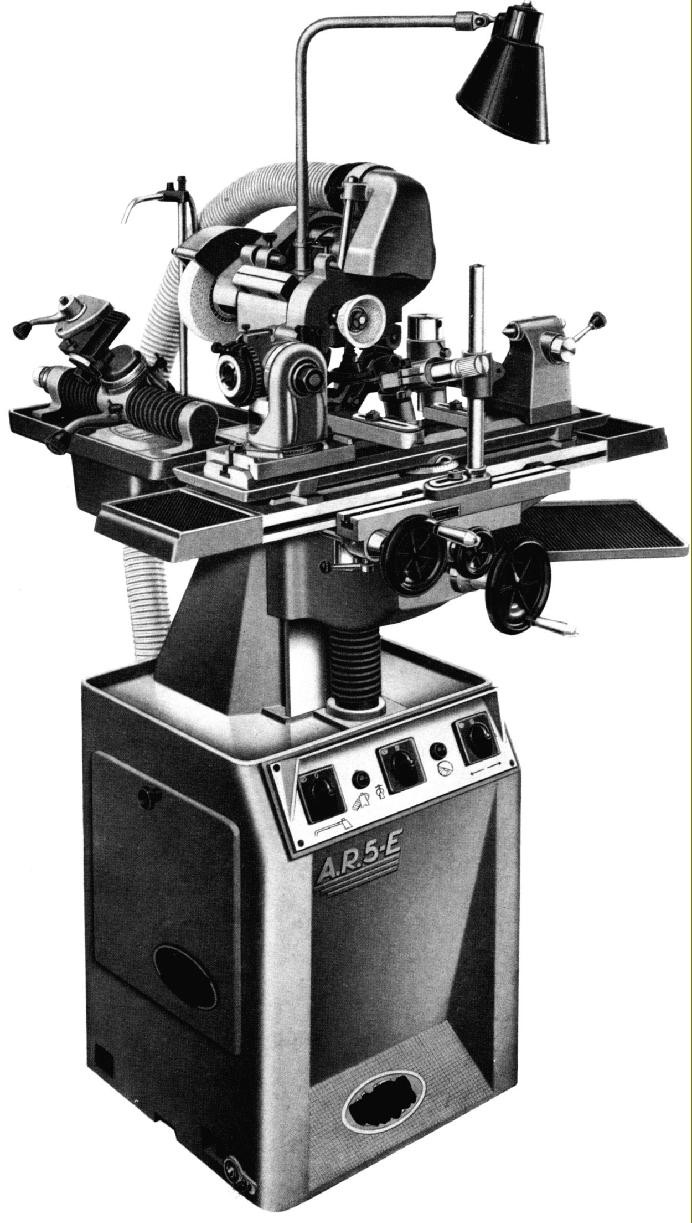

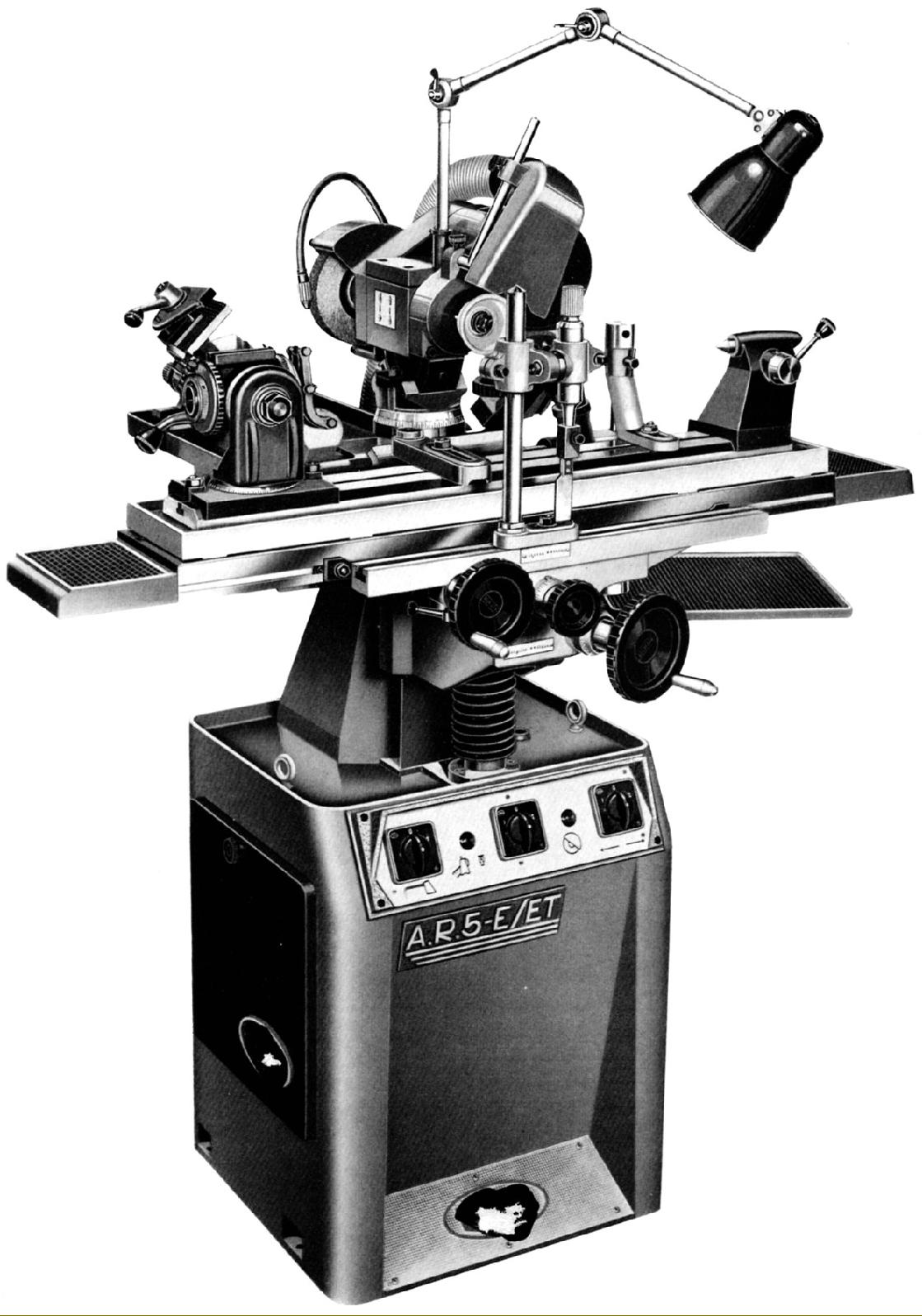

Description

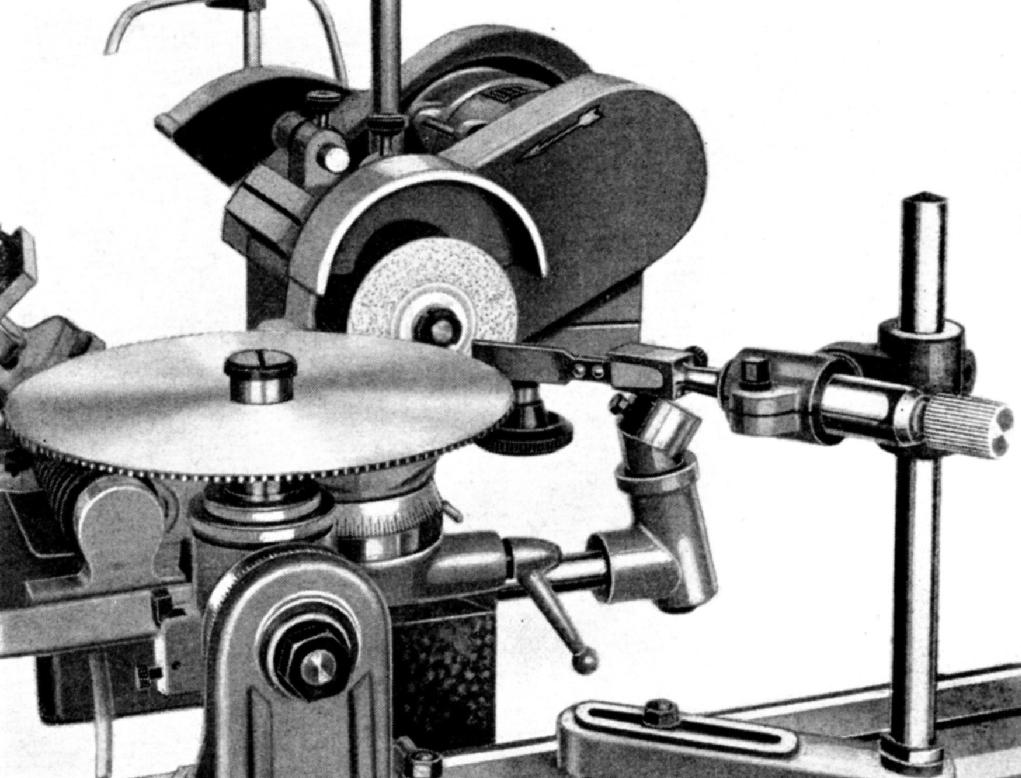

An attachment for grinding lathe tools; five index plates; a light unit; tooth rest; two grinding wheels; a swivelling tool tray

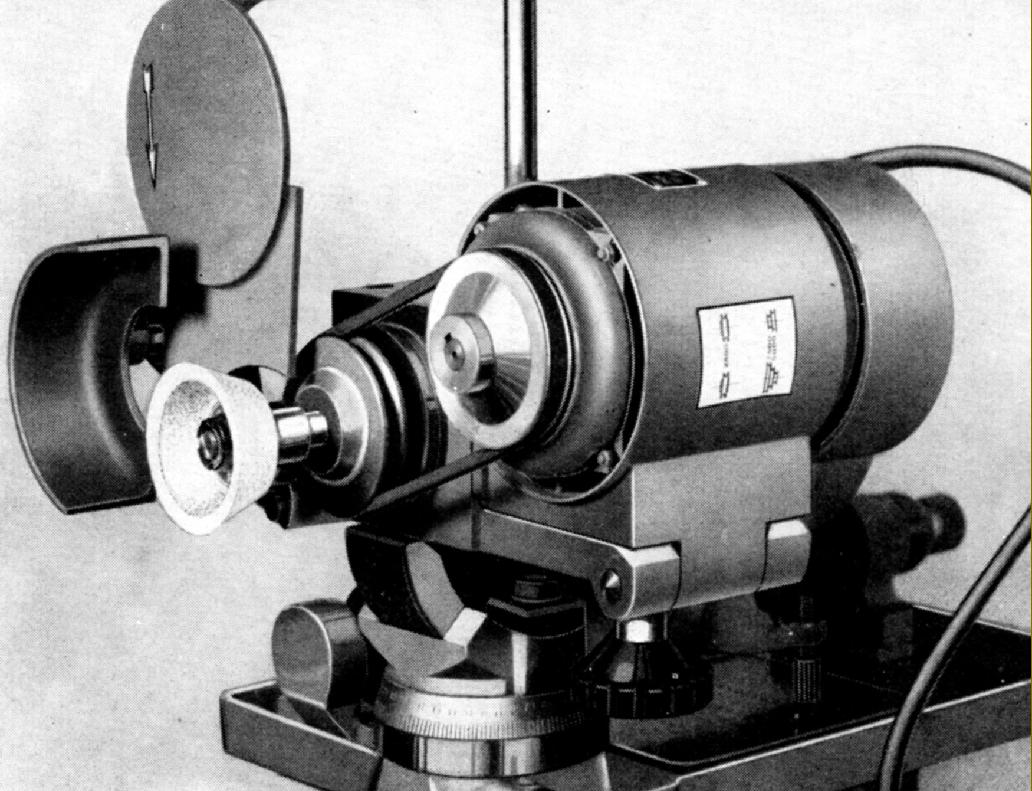

Three speeds of 2,800, 500 and 7,500 RPM. by a 0.75 HP

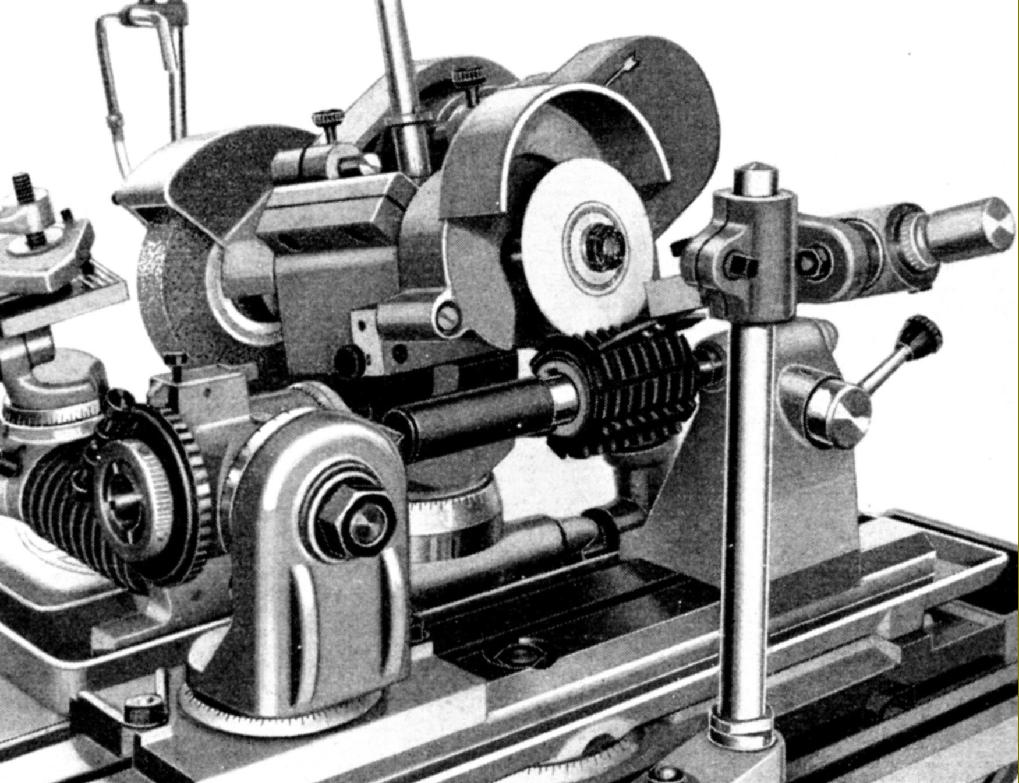

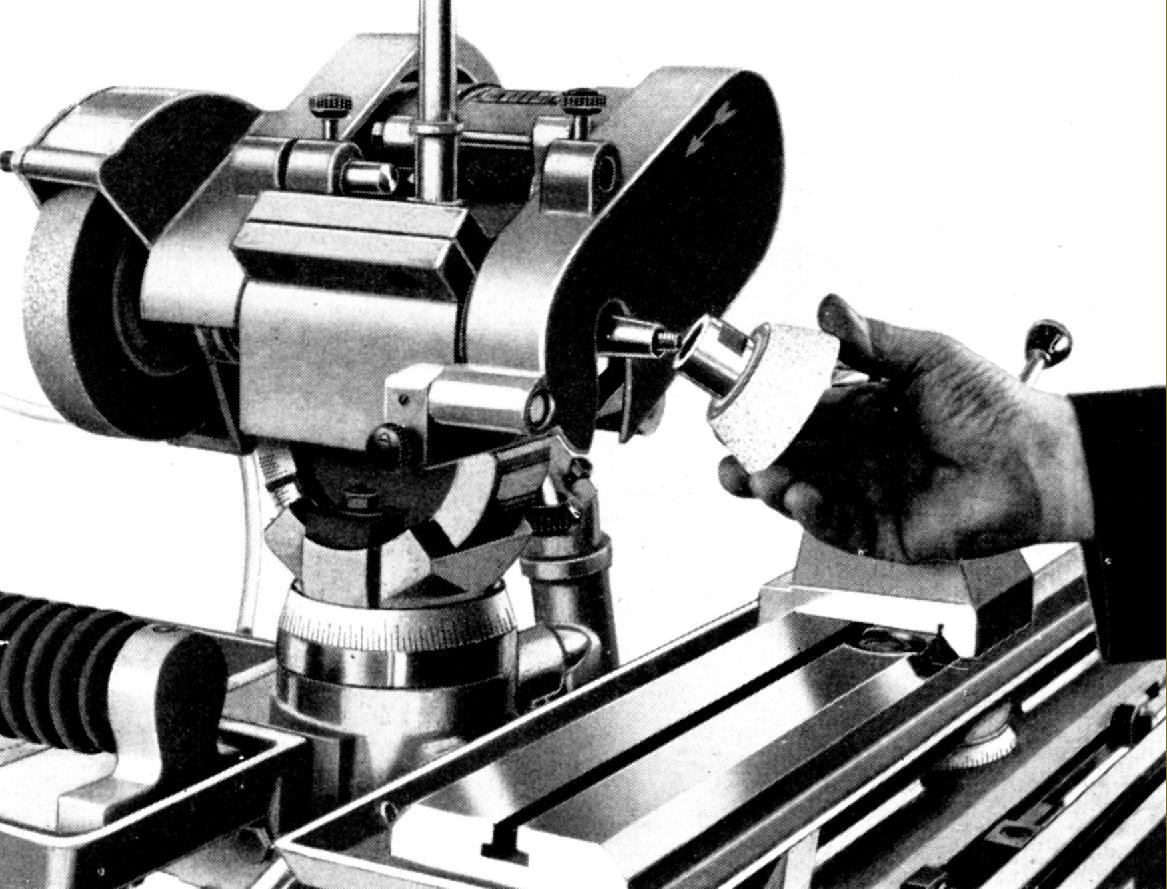

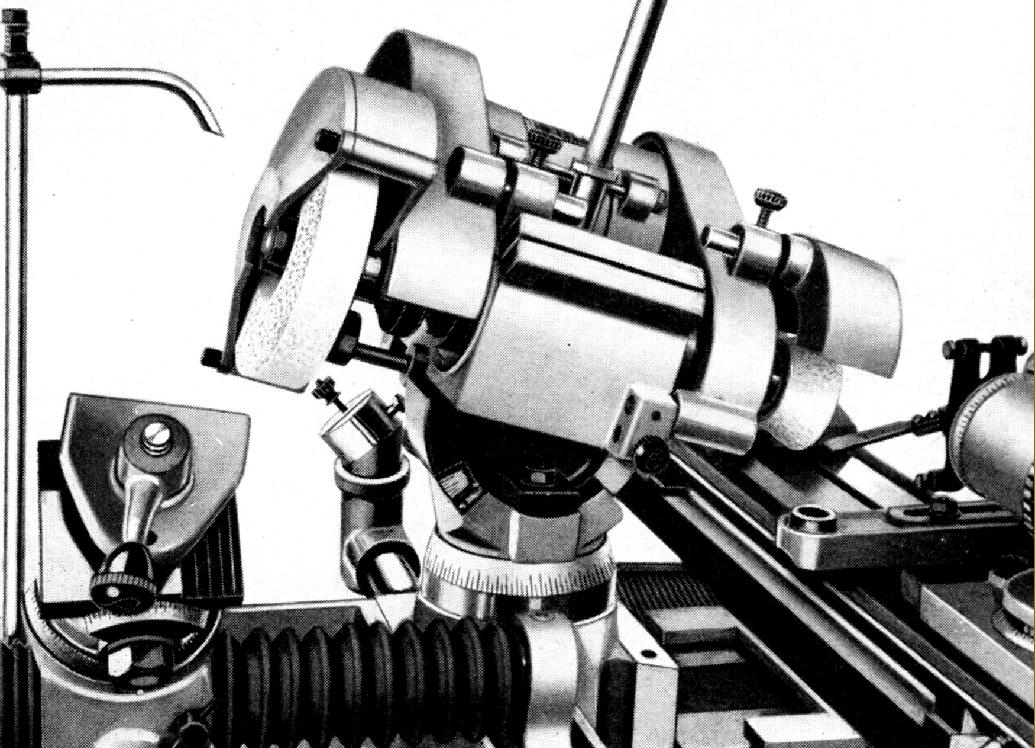

The spindle carried two grinding wheels. It could be rotated through 360? on its swivel base and tilted up and down
The table slid on “Nadella” needle-roller bearings with a travel of 300 mm (11.8″) longitudinally, 135 mm (5.3″) across and 210 mm (8.25″) vertically

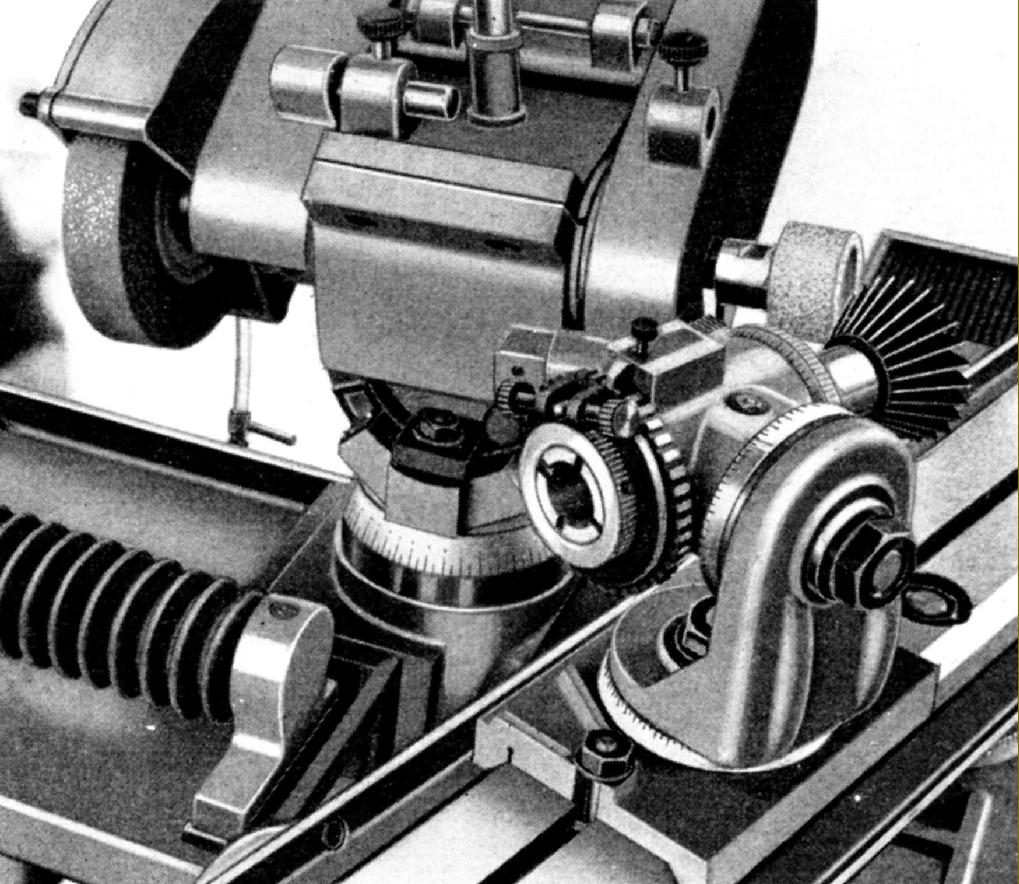

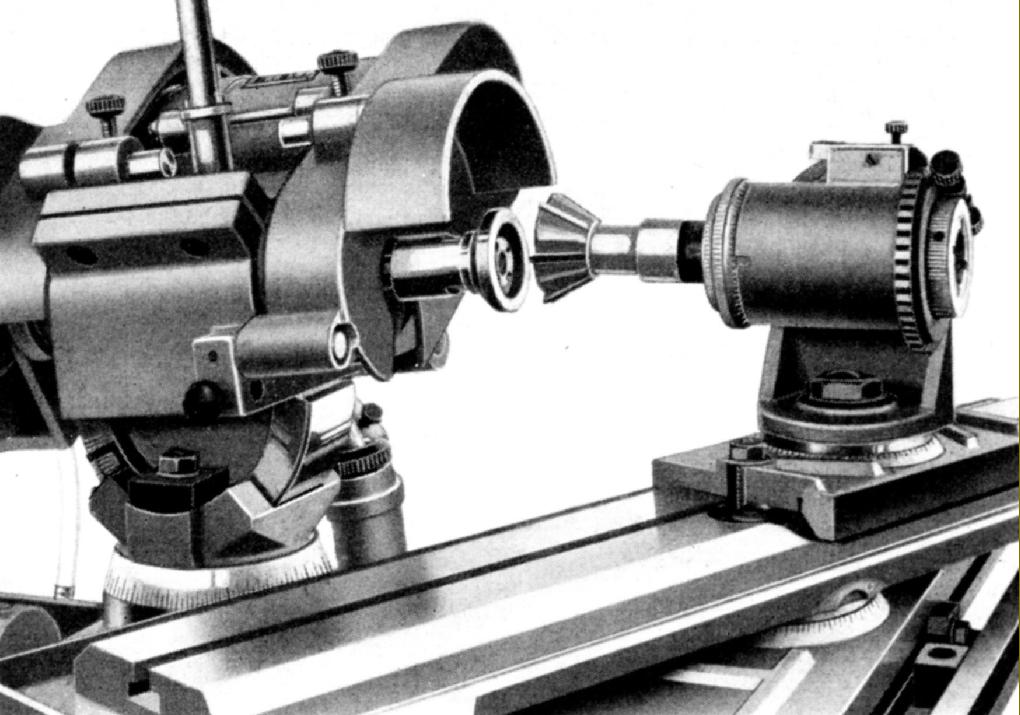

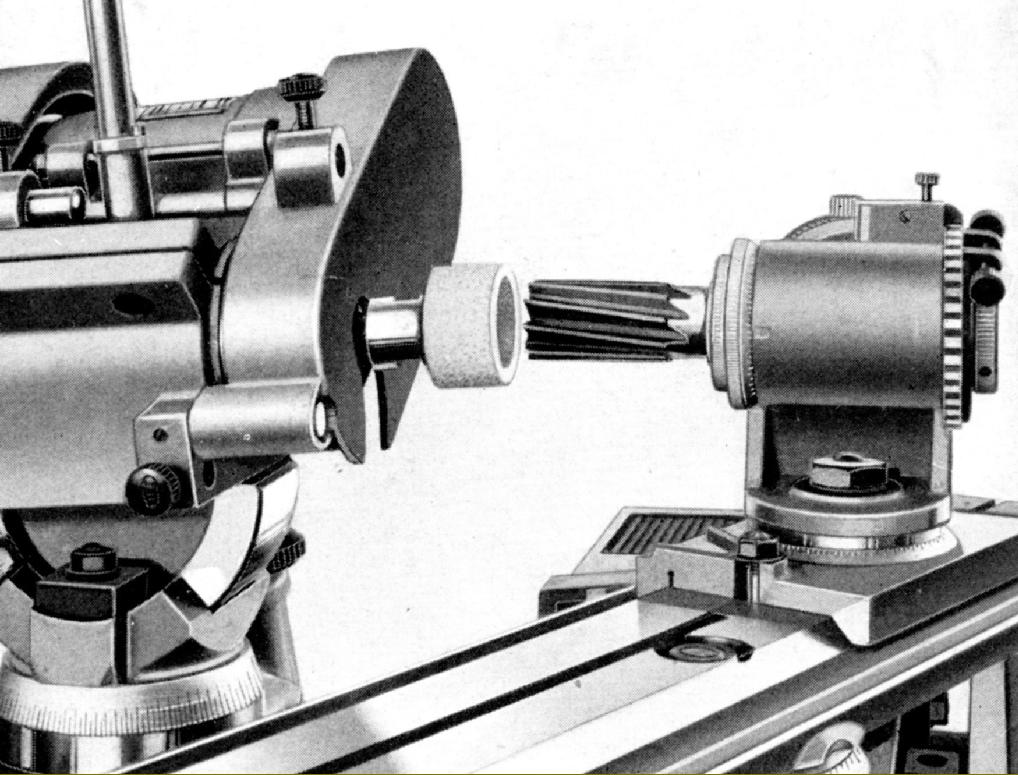

Fitted with its standard Universal Dividing Dead and tailstock work some 390 mm (15.5″) long and 214 mm (8.4″) in diameter could be ground
Fully fitted electrical control coolart equipement

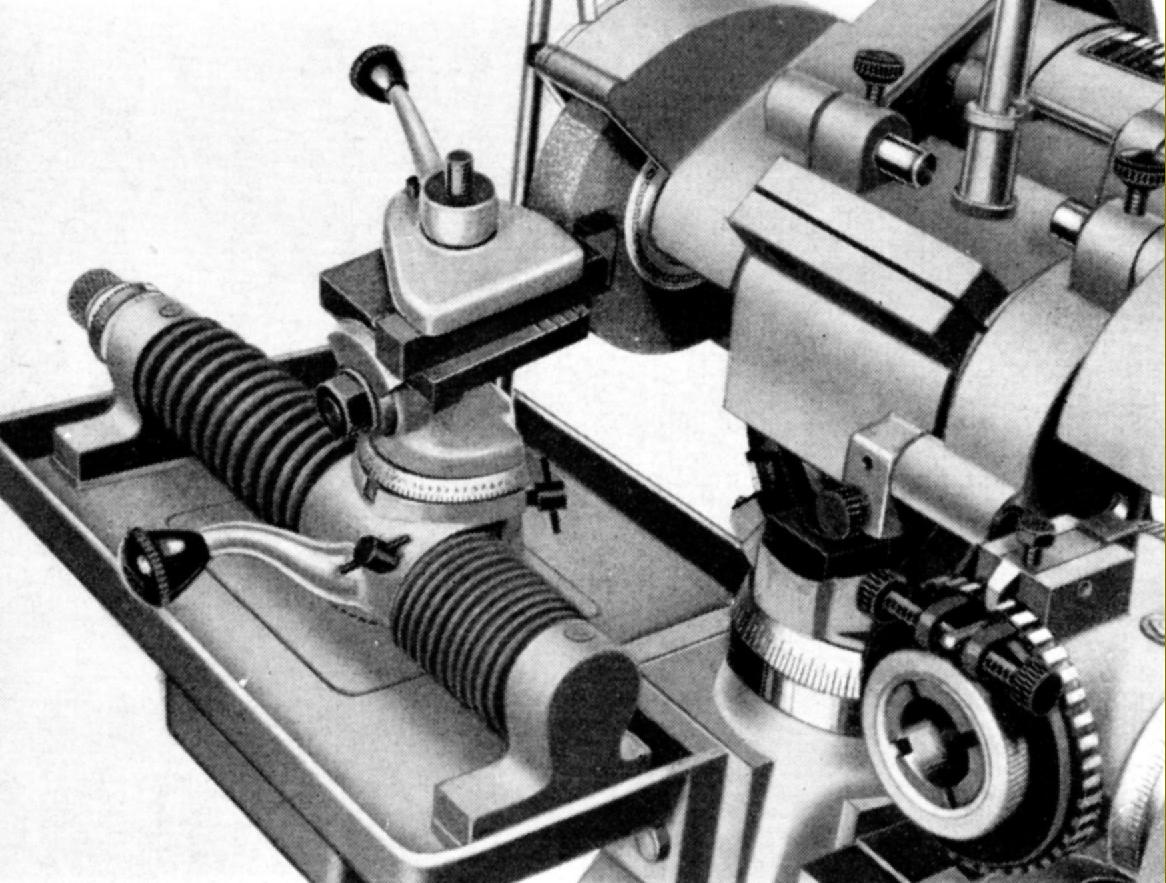

Attachement for grinding lathe tools

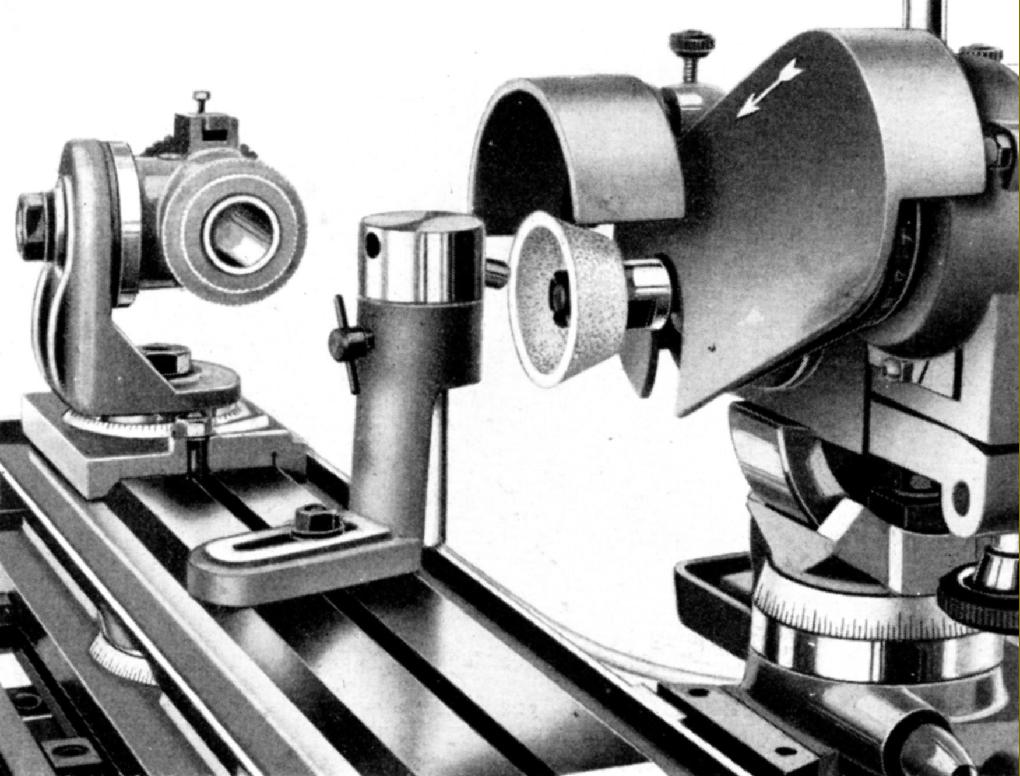

Could also be fitted with wide range of accessories enabling to do any grinding
Dimensions : 1100x1100x1500 mm
